SolBank 3.0

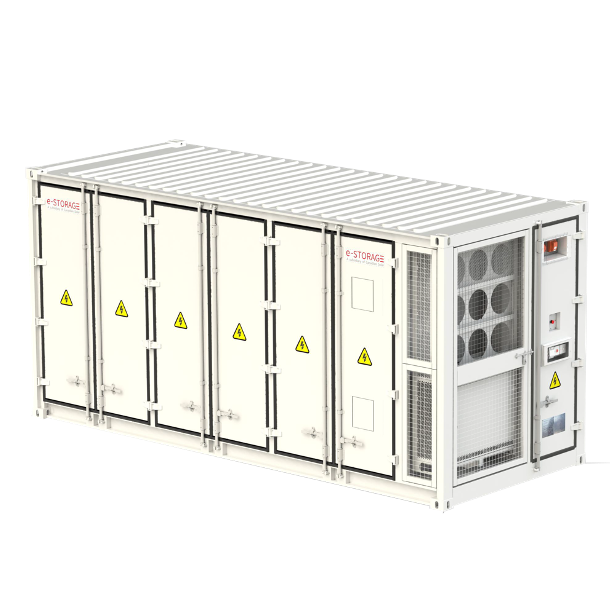

SolBank 3.0 is a containerized energy storage product, features durable LFP cells, a top-tier BMS for active balancing, and an efficient TMS, ensuring superior performance and safety.
SolBank 3.0
SolBank 3.0 is a containerized energy storage product, that features durable LFP cells, a top-tier BMS for active balancing, and an efficient TMS, ensuring superior performance and safety.
Energy Storage System
Power: 1.2 – 2.35 MW
Capacity: 5 MWh
High Energy Density
Optimized Modular Design
Advanced Safety Design
Installation and Service Efficiency
| General | Performance | ||
|---|---|---|---|
| Product Model | CSI-SolBank-S-5016-2h-NA | Rated DC Power(2) | 2350 kW |
| CSI-SolBank-S-5016-4h-NA | 1200 kW | ||
| Battery Chemistry | Lithium Iron Phosphate(LFP) | Initial Storage Capacity(3) | 4700 kWh |
| Pack Configuration | 1P1O4S(1O4Cells) | Charging/Discharging Mode | 0.5 P/ 0.5 P |
| Rack Configuration | 1 P416S(4 Packs) | Duration @Rated Power | 2 hrs |
| System Configuration | 12P416S(12 Racks) | Round Trip Efficiency(RTE)(4) | 93%, 94% |
| Nominal DC Voyage | 1331.2V | Max. Short Circuit Current | 10 kA* 12, 10 kA* 12 |
| Operation DC Voltage Range(1) | 1 164.8V- 1497.6V | ||
| Certifications | UL1973, UL9540, UL9540A, UN38.3/UN3536 | ||
| Design Standards/Codes | NFPA855, NFPA69, NFPA72, NFPA70E, optional NFPA68 | ||
| Mechanical | Safety | ||
|---|---|---|---|
| Enclosure | 20ft. high-cube container | Fire Detection and Alarm | Fire alarm panel, heat and smoke detection, alarm bell and strobe |
| Dimensions (L*W*H) | 6058*2438’2896mm (238.50*95.98*1 14.02 in) | Explosion Prevention | Combustible gas detector with active ventilation |
| Weight (Battery Included) | 38,200 kg (84,217 lbs) | Uninterrupted Power Reserve | Container level UPSfor2-hr control system backup; dedicated fire safety UPS for 24hr fire alarm backup |
| Enclosure Ingress Rating | IP55/ NEMA3R | Fire Suppression Options | Aerosol-based suppression system, dry pipe sprinkler system |
| Painting/Coating | RAL9003/ C4 Coating | Emergency Stop/Automatic Shut—off | Local and Remote |
| Seismic Parameter | Zone 4 | ||
| Noise @1 m distance | 75 dB @1 m distance | ||
| Aux Systems | Circuit Diagram | ||
|---|---|---|---|
| Auxiliary Power Interface | AC480 V/ 60 Hz, 3P5W |  |
|
| Thermal Management System | Smart liquid cooling/heating for battery system | ||
| Aux Load (Standby/Peak) | 1.5 kVA/ 50 kVA(0.5P), 1.5 kVA/ 22 kVA(0.25P) | ||
| Operating Temperature (Ambient) | -30°C to 55°C (derating from 45°C to 55°C) | ||
| Relative Humidity | 95% (non-condensing) | ||
| Altitude | < 2000 m (derating from 2000 m to 4000 m) | ||
| Internal Communication Interface | Ethernet connection ModbusTCP/IP protocol | ||
Notes
- The unit is rated at 1 8V-1497.6V for optimized product performance, the maximum voltage range for the battery system is 1 060.8V-1497.6V
- Rated DC Power is measured at product DC terminal, the Rated DC Power and Initial Storage Capacity limited to the use of two SolBank 0
- Initial Storage the usable product capacity at FAT, contact e-Storage for capacity at COD per project schedule
- DC RTE is measured during capacity test at Rated DC Power, refer to the product warranty document for the complete procedure.
The technical specifications in this document are subject to slight variations. Canadian Solar does not guarantee absolute accuracy due to ongoing innovation and product enhancements. We reserve the right to update this technical data without prior notice. Customers should refer to the most recent version of this document when finalizing contracts, ensuring it forms part of the binding agreement.
